Molded & Overmolded Components
Insert Molded Parts
High-Precision Multi-Material Components for Enhanced Performance
The Seamless Fusion of Strength and Conductivity
Master the connection where high-grade metal meets high-performance polymers.
Manufacturing Process
The insert molding process at PML follows these precision steps:
Insert Placement
Metal or plastic insert is accurately positioned in the mold.
Mold Closure
The mold closes, securing the insert in place.
Injection
Thermoplastic material is injected around the insert.
Cooling
The part solidifies under controlled cooling.
Ejection
The molded component is removed from the mold.
Post-Processing
Excess material is trimmed, and the part is inspected.

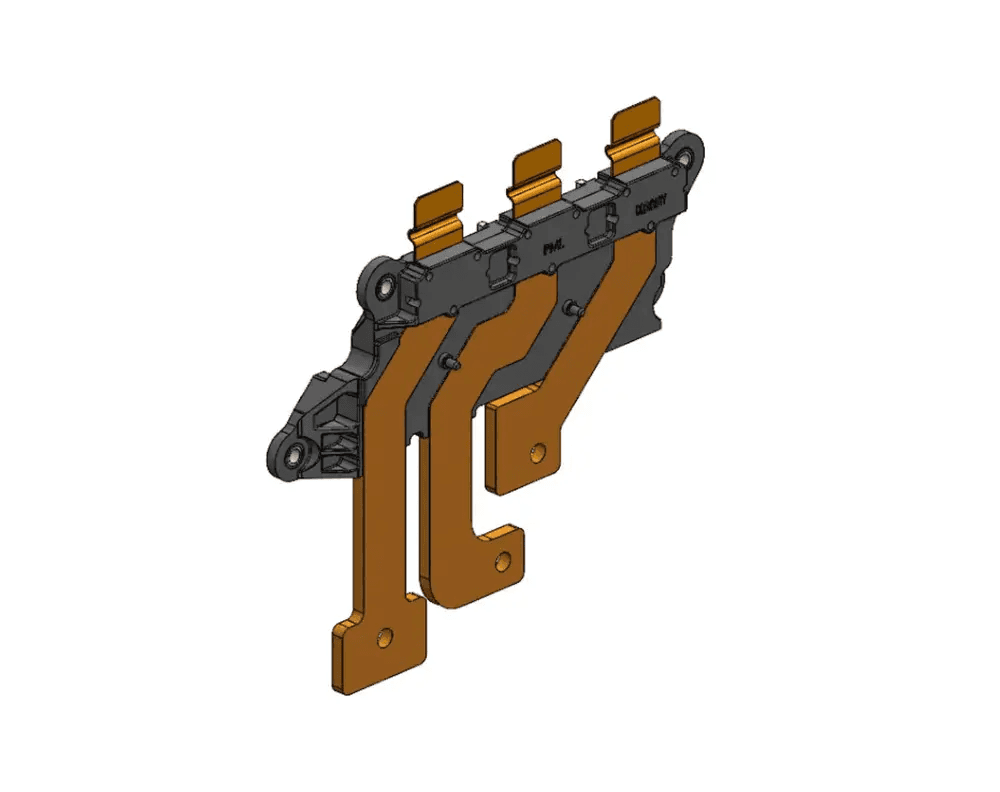

Forged for ±0.05 mm Geometric Perfection
At PML, we specialize in multi-insert moulding with tight tolerances up to ±0.05 mm, depending on raw material grade and part geometry.
Key Features

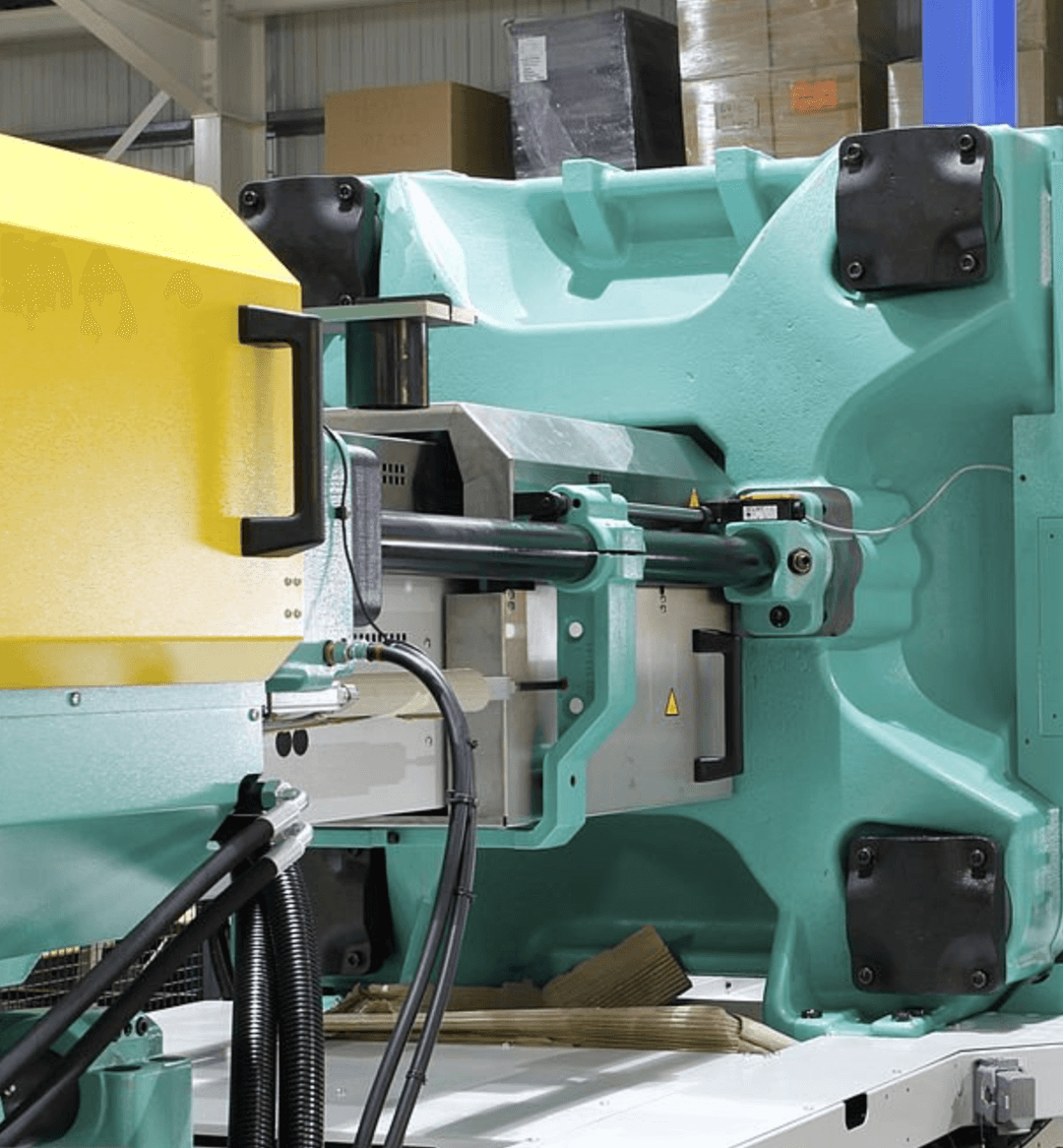

PML is equipped with advanced insert moulding machines for a wide range of component sizes and applications:
| Tool Type | Function |
|---|---|
| Custom Molds | Shape and hold inserts during injection molding |
| Insert Holders | Secure placement of connectors and terminals |
| Injection Mold Cavities | Create complex geometries around inserts |
| Ejection Systems | Remove parts post-cooling with minimal deformation |
| Thermal Regulation Units | Maintain optimal flow and curing conditions |
Core Materials We Work With
Glass Filled and Fire Resistant Engineering grade materials:
1
PBT
Polybutylene Terephthalate
2
PA
Polyamide (commonly known as Nylon)
3
POM
Polyoxymethylene
4
ABS
Acrylonitrile Butadiene Styrene
5
PPS
Polyphenylene Sulfide
6
PEI
Polyetherimide
7
PET
Polyethylene Terephthalate
8
PPA
Polyphthalamide
Core Advantages
With over 65 years of manufacturing excellence, PML delivers wire assemblies trusted by OEMs and Tier 1 suppliers across sectors demanding robust performance.
1
Strong Bonding
Robust, permanent integration between insert and moulded plastic.
2
Design Flexibility
Supports intricate geometries and multi-insert configurations.
3
High Durability
Ideal for mechanical loads, vibration, and thermal cycling.
4
Cost-Effective Production
Enables high-volume manufacturing with minimal assembly.
5
Improved Functionality
Inserts provide electrical conductivity, thermal transfer, or mechanical strength.
Applications
Insert moulded parts are used across industries for their strength, reliability, and compact form factor:
1
Automotive
Connectors, housings, switches
2
Electronics
Circuit board interfaces, electrical connectors
3
Consumer Goods
Tool handles, appliance parts
4
Industrial Equipment
Functional machine components
Trust Reliability & Quality
With over 65 years of manufacturing excellence, PML delivers Insert Moulded Parts trusted by OEMs and Tier 1 suppliers across sectors demanding robust performance.
ISO 45001
Occupational Health and Safety (OH&S) management systems
ISO 14001
Environmental Management Systems (EMS)
ISO 9001
Quality Management Systems (QMS)
IATF 16949
International Standard for Automotive Management Systems
AS 9100
Aerospace Quality Management System (QMS)
Frequently Asked Questions
It significantly reduces labor costs and assembly time by creating a finished part in one step, while providing much higher pull-out strength than screws or adhesives.
Related Products

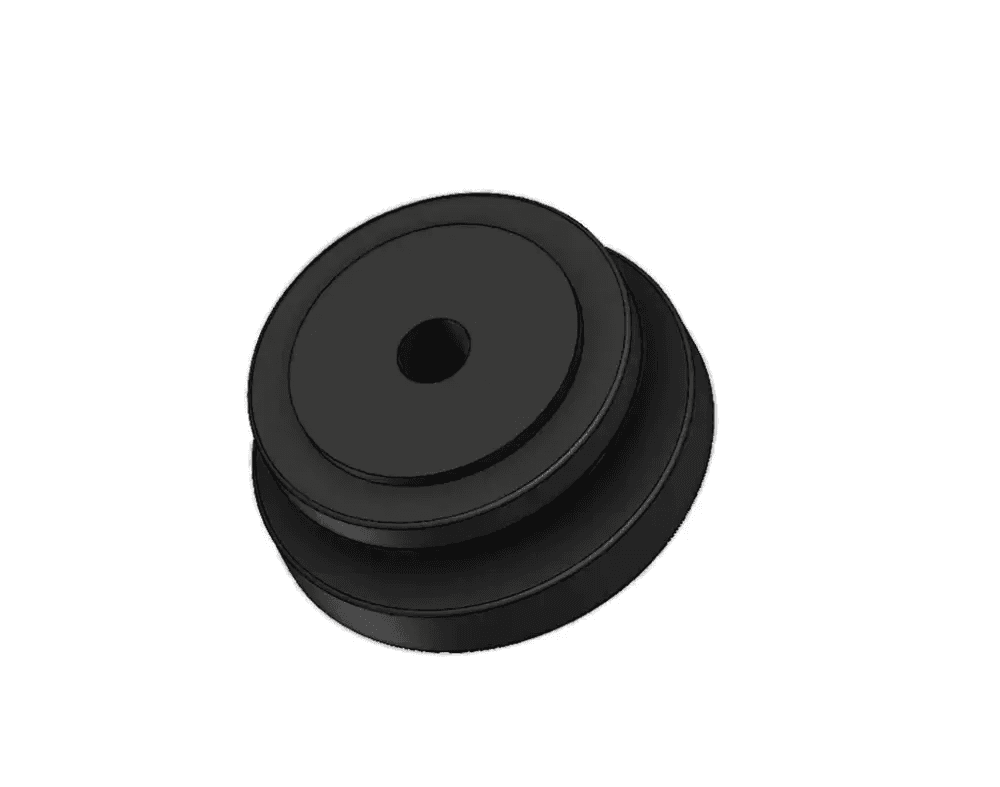

Standalone Plastic Parts
At Permanent Magnets Limited (PML), we manufacture standalone plastic components using high-performance polymers for critical applications across automotive, utility, and industrial sectors.

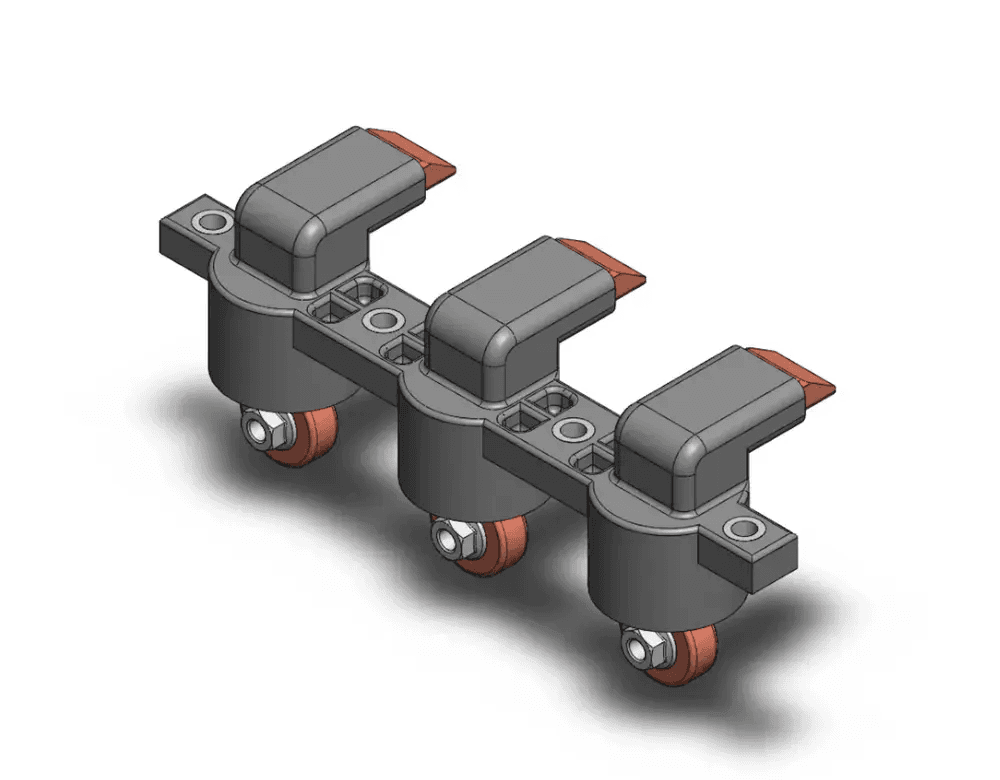

Electrical Molded Parts
