Nimonic 80A
High-strength nickel alloy for high-temperature structural applications
High-Temperature Resilience: Nimonic 80A for Extreme Thermal Performance
Designed for service temperatures up to 815°C, Nimonic 80A combines high tensile strength, creep resistance, and oxidation stability.
Ingot Manufacturing Process
Manufactured from virgin raw materials using Vacuum Induction Melting (VIM) technology to ensure controlled chemistry and minimal impurities.
RFQ from Customer
Alloy chemistry and ingot specifications are finalized as per application requirements.
Alloy Design/Planning
As per customer requirement mould design carried out and planned for charge preparation, charge sequences in VIM furnace. Careful selection of raw materials are the prime factor to achieve specified chemistry of an alloy.
Alloy Melting by VIM
Virgin elements are charged into the VIM furnace either in air or under vacuum, with precise adjustments made for trace element additions during melting.
Process & Quality Control
The melt is poured under vacuum into precision-engineered molds using an automatic tilting mechanism for defect-free solidification.
Primary Finishing
Post-casting processes include surface treatment, cropping, and preparation of ingots for downstream processing.
Testing & Packaging
Every batch is tested for chemical composition by Spark- OES / wet analysis / Gas analysis, and physical compliance as per customer specification before secure packaging.
Technical Specifications
| Element | Min | Max |
|---|---|---|
| C | 0.04 | 0.1 |
| Mn | 0 | 1 |
| Si | 0 | 0.25 |
| P | 0 | 0.005 |
| S | 0 | 0.005 |
| B | 0 | 0.008 |
| Co | 0 | 1 |
| Fe | 0 | 1.5 |
| Cr | 18 | 21 |
| Al | 1 | 1.8 |
| Ti | 1.8 | 2.7 |
| Ni | Balance | - |
| Cu | - | ≤ 0.20% |
| Ti+Al | ≥ 3.50% | - |
Properties
Superior mechanical strength and oxidation resistance at high temperatures—ideal for structural parts in hot gas paths.
| Alloy | Mechanical properties* | PML alloy: as cast* | After Heat Treatment |
|---|---|---|---|
| PML Nimonic 80A | |||
| Rockwell Hardness (BHN) | 200- 250 | 260 Min | |
| Tensile Strength Ultimate (UTS) | 800-1000MPa | 1000-1300MPa | |
| Tensile Strength Yield (YS) | 550 - 750MPa | 600MPa Min | |
| Elongation Break | - | 17% Min | |
| Reduction of Area | Not Applicable | 17% Min |
*Typical values- Mechanical properties after heat treatment varies as per the heat treatment cycle.
Process Capability
Ensuring material integrity with 100% PMI testing via our precise XRF analyser.
| Input: Batch Size | Output | Alloying Elements | Chemistry Tolerance | Impurities Max |
|---|---|---|---|---|
| 30 kg to 600 kg | Ingot of required shape | Al, Ti, Cr | ±0.5% for high-level (2-digit) elements ±0.3% for low-level (1-digit) elements | Oxygen < 25ppm Hydrogen < 3ppm Nitrogen < 50ppm All other impurities < 50 ppm |

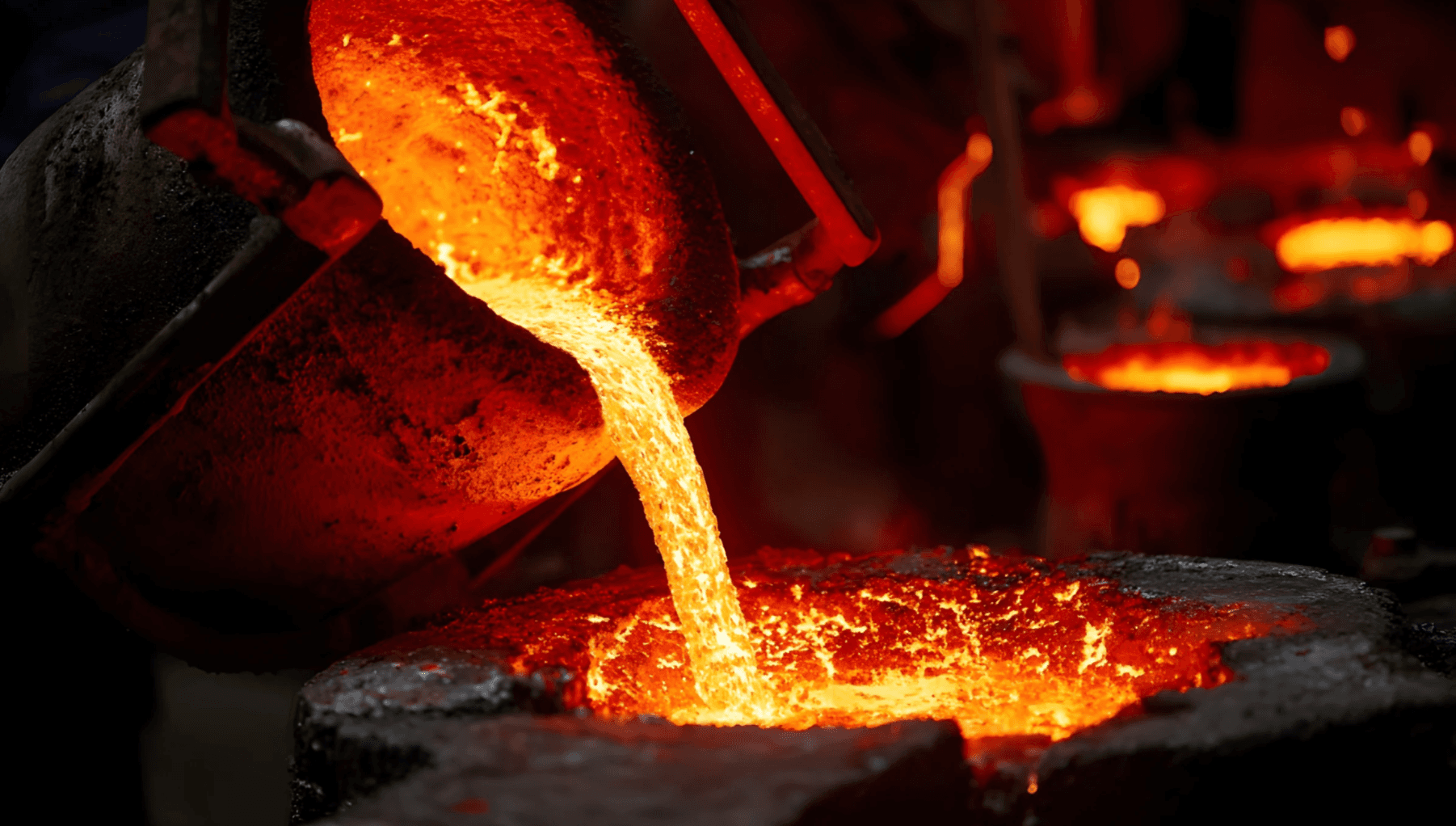

Nimonic 80A: High-Strength Alloy for Extreme Thermal Environments
Nimonic 80A is a high-performance nickel-based alloy that maintains its structural integrity and tensile strength at temperatures as high as 815°C.
Benefits
With over six decades of expertise, PML delivers high-performance component technologies and precision solutions trusted across critical industries.
1
Flexible batch sizes
2
Consistent, reproducible high quality
3
Minimal gas impurity levels
4
Evaporation of volatile non-ferrous impurities (Sn, Zn, Pb, Sb)
5
Reduced non-metallic inclusions
6
Ready-to-use ingots for powder metallurgy (MIM), strip production, rolling, forging, etc.
Applications
PML-produced Nimonic 80A ingots are engineered for demanding high-temperature applications in:
1
Gas turbine components (blades, rings, vanes, and discs)
2
Automotive exhaust valves
3
Die-casting inserts and cores
4
Nuclear boiler tube parts
5
Power generation and aerospace industry
6
Chemical processing and industrial furnaces
Trust, Reliability & Quality
With over six decades of expertise, PML delivers high-performance component technologies and precision solutions trusted across critical industries.
ISO 45001
Occupational Health and Safety (OH&S) management systems
ISO 14001
Environmental Management Systems (EMS)
ISO 9001
Quality Management Systems (QMS)
IATF 16949
International Standard for Automotive Management Systems
AS 9100
Aerospace Quality Management System (QMS)
Frequently Asked Questions
NIMONIC 80A is primarily used in turbine blades, exhaust systems, die-casting tools, and other high-temperature, high-stress applications.
