AC Probe-Axial 20 MV
Precision Axial Probe for AC Magnetic Field Measurement
Cost-effective, lab-grade tool, perfect for applications in diagnostics, product testing, compliance verification, and research.

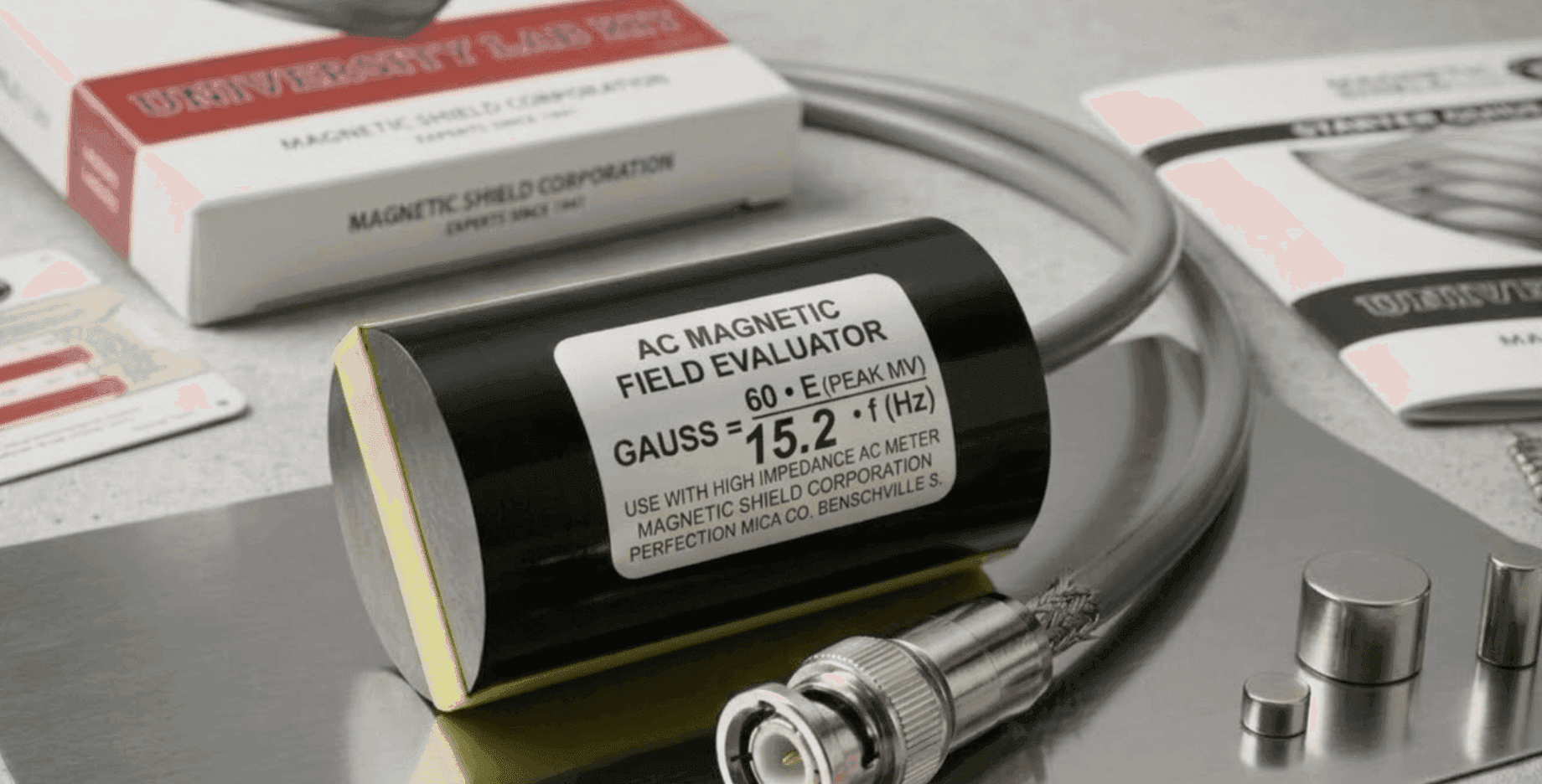

Designed for fast, accurate, and reliable measurements of AC magnetic field intensity, the AC Probe – Axial 20 MV is a highly calibrated field evaluator probe ideal for use with digital volt meters (DVMs) and oscilloscopes.
What is AC Probe – Axial 20 MV?
It delivers 20 millivolts peak per Gauss at 60 Hz in the axial direction and provides excellent precision over a frequency range of 10 Hz to 3000 Hz. Each probe is carefully individually calibrated, with the calibration number printed directly on the housing for easy reference. Equipped with a 2-prong banana plug connector, this probe ensures quick and secure connections to your measuring equipment. No external amplifier is required, making it a plug-and-play solution for engineers, researchers, and technicians.
Benefits
How It Works
1
Connect the 2-prong banana plug to your DVM or oscilloscope.
2
Position the probe axially in alignment with the magnetic field source.
3
Observe the voltage output, which is proportional to the magnetic field.
4
Apply the 20 mV/Gauss factor to convert readings into field intensity.
5
Suitable for industrial, academic, and regulatory testing environments.
Key Features
1
Axial-direction field sensitivity
2
20 mV/Gauss at 60 Hz response
3
Frequency range: 10 Hz to 3000 Hz
4
2-prong banana plug for universal meter compatibility
5
Individually calibrated for traceable, accurate readings
6
Works with both digital voltmeters and oscilloscopes
7
Compact, portable, and rugged for lab or field use
Applications
1
Axial Field Evaluation
Measures AC magnetic field intensity in the axial orientation.
2
Shielding Attenuation
Tests attenuation ratios of magnetic shielding materials and enclosures.
3
Emission Measurement
Detects magnetic emissions from power lines, motors, and electronic equipment.
4
Field & EMC Audits
Used in field audits, laboratory assessments, and EMC compliance evaluations.
5
Oscilloscope/DVM Interface
Connects directly to oscilloscopes and digital voltmeters for waveform and amplitude tracking.
6
Instrument Integration
Connects with oscilloscopes and voltmeters for detailed waveform analysis.
