High Performance Alloys

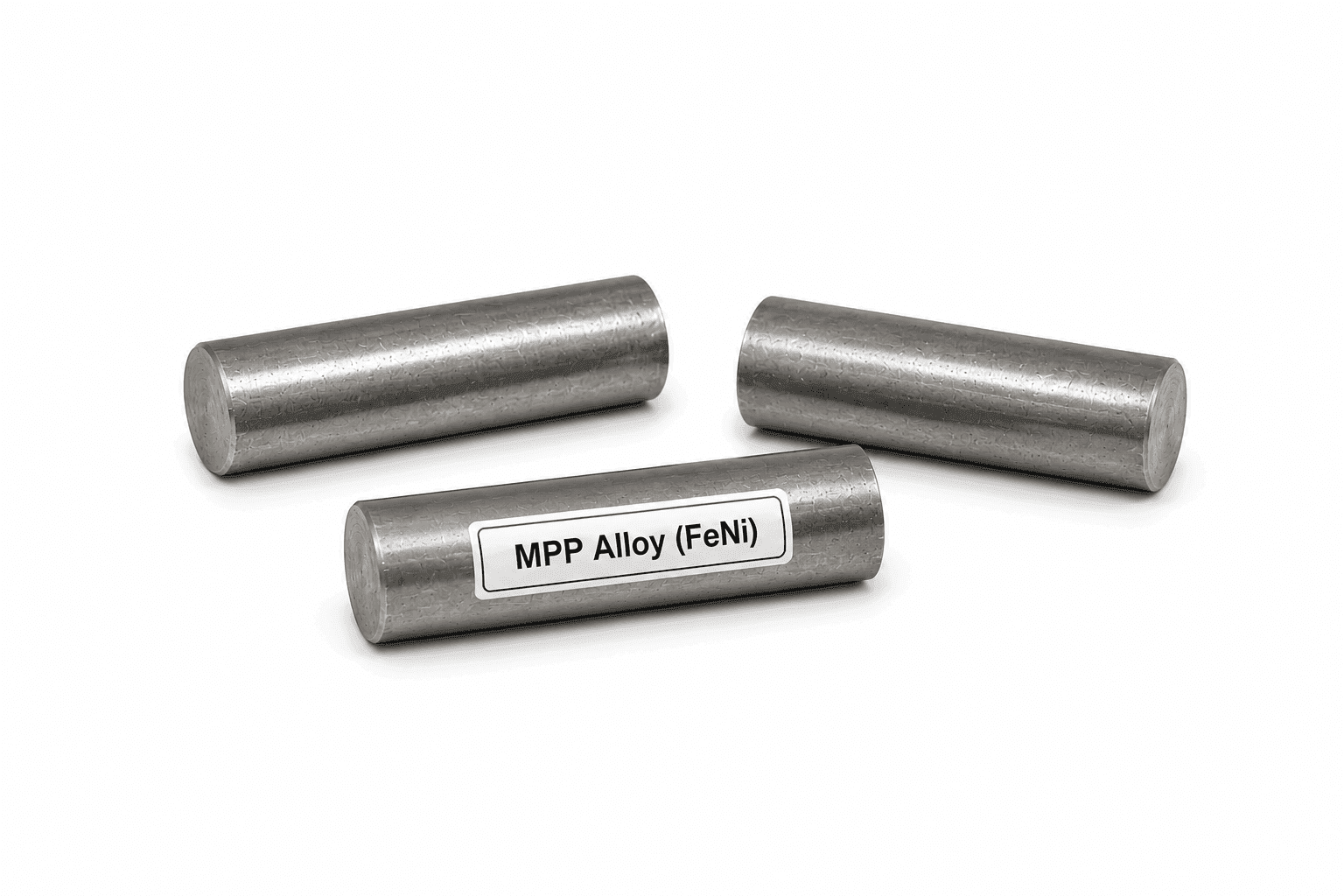

MPP Alloy (FeNi)
Empower precision applications with PML’s FeNi alloys, optimized for magnetic performance, corrosion resistance, and electrical efficiency.
Engineered for soft magnetic applications with superior ductility, high permeability, and minimal coercivity.
Ideal for transformers, sensors, magnetic shielding, and precision electronics-ready for advanced forming and machining.
Ingot Manufacturing Process
High-purity FeNi alloy ingots, made from virgin elements through controlled Air Induction Melting (AIM) technology.
RFQ from Customer
Alloy chemistry and ingot specifications are finalized as per application requirements.
Alloy Design/Planning
As per customer requirement mould design carried out and planned for charge preparation, charge sequences in Air induction melting furnaces in a controlled atmosphere.

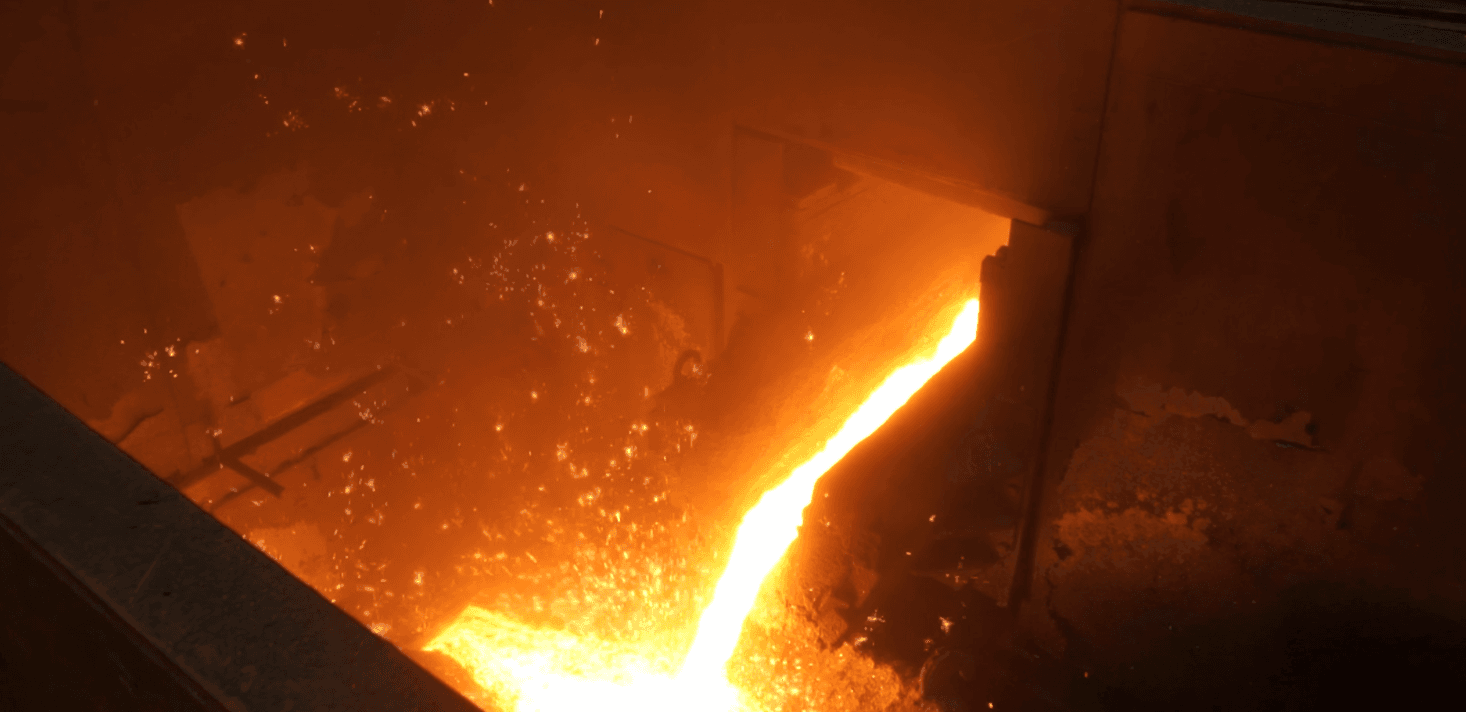

Alloy Melting by AIM
Furnace cleaning, controlled charging, stirring, superheating, ceramic filtration, preheated moulds, and controlled cooling ensure high-quality, defect-free alloy ingots.
Process & Quality Control
The melt is prepared under Air induction melting furnaces in a controlled atmosphere. Argon gas purging from hood and bottom ensures to minimize gas impurities.
Primary Finishing
Post-casting processes include surface treatment, cropping, and preparation of ingots for downstream processing.
Testing & Packaging
Every batch is tested for chemical composition by Spark- OES / wet analysis / Gas analysis, and physical compliance as per customer specification before secure packaging.
Chemical Composition
Technical Specifications
Typical ranges for PML FeNi Alloys:
| Elements | Range (Min -Max%) |
|---|---|
| FeNi80 | |
| Nickel | 79.00-81.50 |
| Carbon | 0.00 - 0.030 |
| Silicon | 1.10-1.50 |
| Manganese | 0.60-1.10 |
| Chromium | 2.60-3.00 |
| Phosphorous | 0.00-0.020 |
| Sulphur | 0.00-0.020 |
| Iron | Balance |
| Oxygen | 0.00-0.010 |
| Nitrogen | 0.00-0.010 |
Properties
Tailored for high magnetic permeability, low coercivity, and excellent corrosion resistance. Nickel enhances ductility and soft magnetic behavior, ideal for electromagnetic performance under varying conditions.
| Alloy | Mechanical properties* | PML alloy: as cast* | After Heat treatment* |
|---|---|---|---|
| PML FeNi alloy | Vickers Hardness (HV) | 150 - 220HV | - |
| Tensile Strength Ultimate (UTS) | 500 - 800MPa | - | |
| Tensile Strength Yield (YS) | 400 - 600MPa | - | |
| Elongation of Break | - | - | |
| *Typical | Reduction area | - | - |
Process Capability
A premium cobalt-chromium-molybdenum alloy engineered for exceptional wear resistance, corrosion performance, and mechanical strength.
| Input : Batch size | Output | Alloying Elements | Chemistry tolerance | Impurities Max |
|---|---|---|---|---|
| 100 kgs to 250 Kgs | Ingot of required shape as per customers requirement | Cr, Mo | +/- 0.5 % for Higher level % (Above 2 digit) and +/- 0.3 % for lower level % (Single digit) | Oxygen < 300 ppm Hydrogen < 100 ppm Nitrogen<200 ppm All other impurities < 100 ppm |
The High-Permeability Core of High-Frequency Power
From high-frequency flyback transformers to precision filter chokes, rely on our MPP Air Melt for the electromagnetic consistency and energy efficiency your high-performance circuits demand.
Applications
FeNi alloys are built for next-gen electromagnetic and electrical applications:
1
Magnetic Cores & Transformers
for optimized flux handling
2
Inductors & Power Systems
storing energy via efficient magnetic loops
3
Electromagnetic Shielding
in defense, aerospace, and critical electronics
4
Sensors & Magnetic Recording Heads
enabling magnetic field detection and data precision
5
Electric Motors
in automotive & aerospace generators
6
Microwave & RF Applications
where signal control is critical
7
Precision Instruments
requiring stable and reproducible magnetic behavior
Trust Reliability & Quality
With over six decades of expertise, PML delivers high-performance component technologies and precision solutions trusted across critical industries.
ISO 45001
Occupational Health and Safety (OH&S) management systems
ISO 14001
Environmental Management Systems (EMS)
ISO 9001
Quality Management Systems (QMS)
IATF 16949
International Standard for Automotive Management Systems
AS 9100
Aerospace Quality Management System (QMS)
Frequently Asked Questions
It’s a nickel-iron alloy known for its excellent magnetic properties, high permeability, and corrosion resistance, designed for soft magnetic and EMI-sensitive applications.
