High-Performance Magnetic Shielding Components for Sensitive Electronics
Comprehensive Magnetic Shielding for EMI Control & Signal Integrity
Manufactured from high-permeability NiFe soft magnetic alloys, our shields undergo advanced dry hydrogen annealing and are rigorously tested for magnetic and dimensional performance.

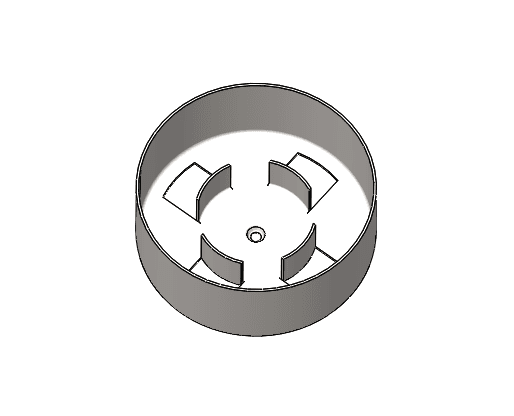

PML Precision Magnetic Shields Cans and Lids
PML's magnetic shields, cans, and lids are precision-engineered to protect sensitive electronic components from external magnetic and electromagnetic interference (EMI). PML performs controlled Dry Hydrogen Annealing: relieves internal stresses, re-aligns microstructure, restores magnetic permeability.
Technical Specifications
Shield (Flat or Formed)
| Parameter | Specification |
|---|---|
| Material | NiFe (Soft Magnetic Alloy Steel) |
| Thickness | 0.335 mm to 1.5 mm |
| Width | 3 mm to 150 mm |
| Accuracy | ±0.5 mm |
| Customization | Available |
Technical Specifications

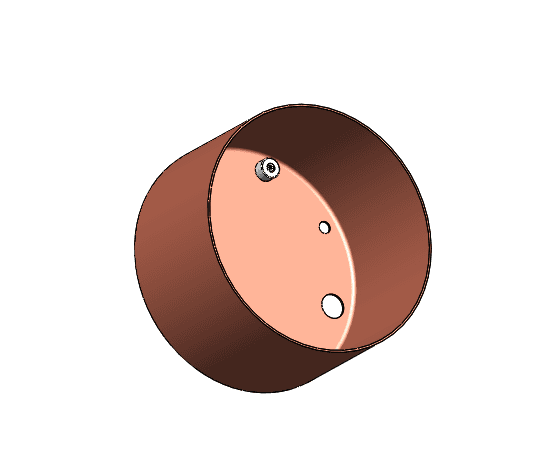

Drawn Can
| Parameter | Specification |
|---|---|
| Material | NiFe (Soft Magnetic Alloy steel) |
| Thickness | 0.4 mm to 1 mm |
| Diameter | 5 mm to 100 mm |
| Height | 5 mm to 60 mm |
| Accuracy | ±0.5 mm |
| Customization | Available |
Advantages
1
Reduced magnetic noise and EMI
2
Enhanced sensor accuracy and response time
3
Protection of sensitive circuits from parasitic fields
4
Improved magnetic isolation in compact systems
5
Tailored designs for industry-specific requirements
6
Compatible with planar sensor configurations
7
Automotive-grade design support through partnerships
Applications
1
Automotive
EV Inverters, Onboard Chargers (OBC), DC-DC Converters, Battery Management Systems
2
Power Electronics
Power Inverters, Converters, SMPS, EV Power Modules
3
Smart Metering
Smart Energy Meters, AMI Systems, Power Monitoring Units
4
Naval
Gyrocompass Systems, INS
5
Aerospace
FOG IMUs, MEMS IMUs, Flight Control Systems
6
Defense
Missile GNC, EO/IR Gimbals, INS
7
Oil & Gas
Downhole navigation systems
8
Infrastructure
Tunneling and underground navigation systems
9
UAVs
MEMS IMUs, Stabilization Systems
10
Medical
MRI Systems, CT Scanners, Patient Monitoring Equipment, Diagnostic Devices
Manufacturing Process
1
Understand Requirement
Application, environment, and shielding objectives defined.
2
Study Drawings
Detailed analysis of specifications and constraints.
3
Process Design
Engineering the optimal manufacturing route.
4
Tooling & Planning
Precision tooling and production workflow setup.
5
Precision Forming
High-accuracy shaping with minimal stress induction.
6
Hydrogen Annealing
Critical step to restore magnetic performance.
7
Testing & Validation
Magnetic properties verified against specifications.
8
Traceability
End-to-end material and process tracking.
Frequently Asked Questions
Magnetic shields and draw cans are enclosures made from soft ferromagnetic materials (like Mu metal) that redirect magnetic flux around sensitive areas, preventing EMI. A draw can is a deep-drawn cylindrical shield, offering consistent wall thickness and superior shielding effectiveness in 3D enclosures.
