Flux Concentrators / Shields
Wound Cut Core
High-Precision Magnetic Core for Flux Concentration and Current Sensing
High-Precision Toroidal Cut Cores for Advanced Current Sensing
Engineered from premium Nickel-Iron and Silicon-Iron alloys, our cut cores undergo controlled hydrogen annealing to deliver superior linearity and minimal energy loss.
High-Linearity Soft Magnetic Cores for Current Sensing
PML’s soft magnetic cut cores provide a high-efficiency solution for flux concentration with minimal signal distortion. Our controlled manufacturing process ensures optimal magnetic permeability, making these cores ideal for critical medical and industrial electronic applications.
Magnetic & Chemical Properties
| Magnetic & Chemical Properties | ||||||||
|---|---|---|---|---|---|---|---|---|
| Sr. No. | Properties | Measurement | Unit | 80% NiFe⁷ | Mumetal⁷ | 48% NiFe⁸ | Si Steel | Fe-49% Co-2%V |
| 1 | DC Magnetic Properties | Bs | Tesla | 0.75¹ | 0.76¹ | 1.5³ | 1.73⁹ | 2.25(11) |
| Br | Tesla | 0.4² | 0.5² | 1.1³ | - | 1.3 | ||
| B at 100 A/m | Tesla | - | - | 1.2 | - | - | ||
| Hc² | A/m | 0.35 | 0.6 | 2.8 | - | 40 to 160(12) | ||
| µ4⁴ | - | 550000 | 120000 | - | - | - | ||
| µ max | - | 570000 | 350000 | 190000 | - | 18000 | ||
| 2 | 60Hz AC Magnetic Properties | µ4z⁵ | - | 70000 | 50000 | 10400 | >2500 | 1200 |
| µz8⁶ | - | - | - | 54000 | - | - | ||
| µ max | - | 95000 | 95000 | - | - | 12000 | ||
| Core loss | W/Kg | 0.015 | 0.015 | 0.4 | 3.9¹⁰ | 2.3 to 3.0(13), 3.8 to 5(14) | ||
| 3 | Chemical Composition | Ni | % | 78-81 | 78-81 | 47-48 | Nil | - |
| Mo | % | 4.5-6 | 4.5-6 | Nil | Nil | - | ||
| Si | % | 0.05-0.4 | 0.05-0.4 | 0.1 | 1.6 - 2.1 | - | ||
| Mn | % | 0-0.5 | 0-0.5 | 0.5 | 0.5 | - | ||
| C | % | 0.01 | 0.01 | 0.005 | 0.01 | - | ||
| Co | % | - | - | - | - | 49 | ||
| V | % | - | - | - | - | 2 | ||
| Fe | % | Balance | Balance | Balance | Balance | Balance | ||
| 4 | Physical Properties | Density | g/cm³ | 8.7 | 8.7 | 8.2 | 7.75 | 8.12 |
| specific Heat | J/Kg.˚C | 460 | 460 | 500 | - | 460 | ||
| Thermal conductivity | W/m.˚C | 19 | 19 | 13 | - | 33 | ||
| Mean CTE between -50˚C & +200˚C | ˚C⁻¹ | 12 x 10⁻⁶ | 12 x 10⁻⁶ | 8 x 10⁻⁶ | - | 9.7 x 10⁻⁶ | ||
| Electrical resistivity | µΩ.cm | 60 | 60 | 45 | - | 40 | ||
| Curie Point | ᵒC | 420 | 420 | 450 | - | 950 | ||
| Coefficient of magnetostriction at Saturation ∆l / l | - | 1-3 x 10⁻⁶ | 1-3 x 10⁻⁶ | 24 x 10⁻⁶ | - | 70 x 10⁻⁶ | ||
| Melting temperature | ᵒC | 1450 | 1450 | 1425 | - | 1480 | ||
| Hardness(Cold Worked) | Hv | 325 | 325 | 250 | - | 400 | ||
| UTS(Cold Worked) | MPa | 1050 | 1050 | 850 | - | 1200 | ||
| 0.2% PS(Cold Worked) | MPa | 1030 | 1030 | 820 | - | 1150 | ||
| Elongation(Cold Worked) | % | 3 | 3 | 3 | - | 2 | ||
| Hardness(Annealed) | Hv | 160 | 160 | 140 | 155 | 220 | ||
| UTS(Annealed) | MPa | 650 | 650 | 500 | 380 | 480 | ||
| 0.2% PS(Annealed) | MPa | 280 | 280 | 250 | 250 | 300 | ||
| Elongation(Annealed) | % | 35 | 35 | 40 | min 30 | 4.5 | ||
| Grain Size(Annealed) | - | 8 | 8 | 9 | - | - | ||
| Hardness(Finished Part) | Hv | 110 | 110 | 100 | - | - | ||
| UTS(Finished Part) | MPa | 530 | 530 | 450 | - | - | ||
| 0.2% PS(Finished Part) | MPa | 160 | 160 | 200 | - | - | ||
| Elongation(Finished Part) | % | 45 | 45 | 35 | - | - | ||
| Grain Size(Finished Part) | - | 0-3 | 0-3 | 0 | - | - | ||
Dimensions and Tolerances
| DIMENSIONS AND TOLERANCE | ||||
|---|---|---|---|---|
| Outer Diameter (mm) | Tolerance (mm) | Inner Diameter (mm) | Tolerance (mm) | Height Tolerance (mm) |
| < 10 | ± 0.4 | < 10 | ± 0.3 | ± 0.3 |
| < 25 | ± 0.5 | < 25 | ± 0.4 | ± 0.4 |
| < 50 | ± 1.0 | < 50 | ± 0.5 | ± 0.5 |
| < 80 | ± 1.25 | < 80 | ± 0.75 | ± 0.8 |
| < 100 | ± 1.5 | < 100 | ± 0.8 | ± 0.8 |
| < 160 | ± 2.0 | < 160 | ± 1.3 | ± 1.5 |
| < 200 | ± 2.5 | < 200 | ± 1.5 | ± 1.5 |
| < 320 | ± 2.5 | < 320 | ± 2.0 | ± 2.0 |
NOTE: General Cutting gap tolerance will be ± 0.5mm
Key Features
1
Manufactured using high-permeability Nickel-Iron or Silicon-Iron alloys
2
Controlled annealing for consistent magnetic properties
3
Durable varnish impregnation coating for mechanical protection
4
Custom dimensions available on request
5
Ideal for current sensors and flux concentrators
6
Low core loss, high linearity, and very low hysteresis
Applications
Ideal for high-accuracy current measurement in:
1
Automotive systems
2
Aerospace applications
3
Medical equipment
4
Renewable energy solutions
5
Power testing and analysis
6
Industrial transformers
7
High EMI environments
Trust Reliability & Quality
With over 60 years of manufacturing excellence, PML delivers Wound cut cores trusted by OEMs and Tier 1 suppliers across sectors demanding robust performance.
ISO 45001
Occupational Health and Safety (OH&S) management systems
ISO 14001
Environmental Management Systems (EMS)
ISO 9001
Quality Management Systems (QMS)
IATF 16949
International Standard for Automotive Management Systems
AS 9100
Aerospace Quality Management System (QMS)
Related Products
Laminated Flux Concentrators
High-Performance Magnetic Cores for Precision Current Sensing

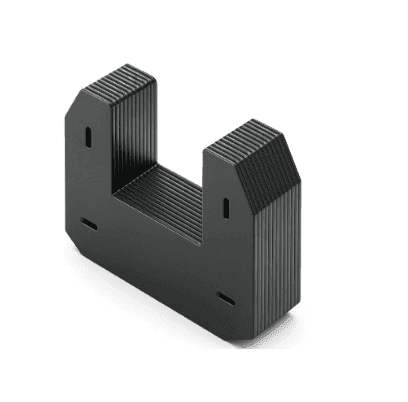

Laminated U-Shield
Magnetic Shielding for Planar Current Sensing Applications
C-Shape Flux Concentrator
High-Performance Ferromagnetic Shield for Enhanced Magnetic Field Sensing

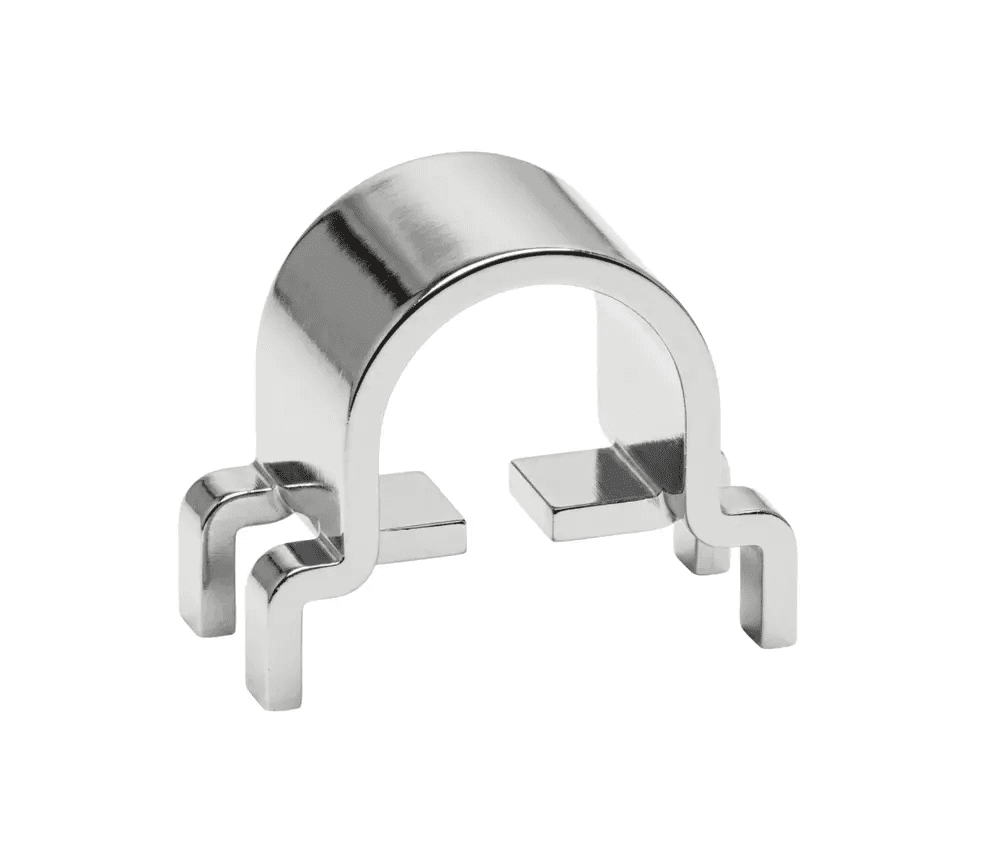

UCR Flux Concentrator
