Designed Turned/Machined Parts
Dowel Pins
Manufactured from high-quality materials like stainless steel, brass, copper, and aluminum, these pins are made to withstand stress, shear, and dynamic loads in both static and moving assemblies.
High-Precision Alignment, Load Transfer & Structural Integrity
Engineered for Precision, Strength & Seamless Alignment Across Critical Assemblies

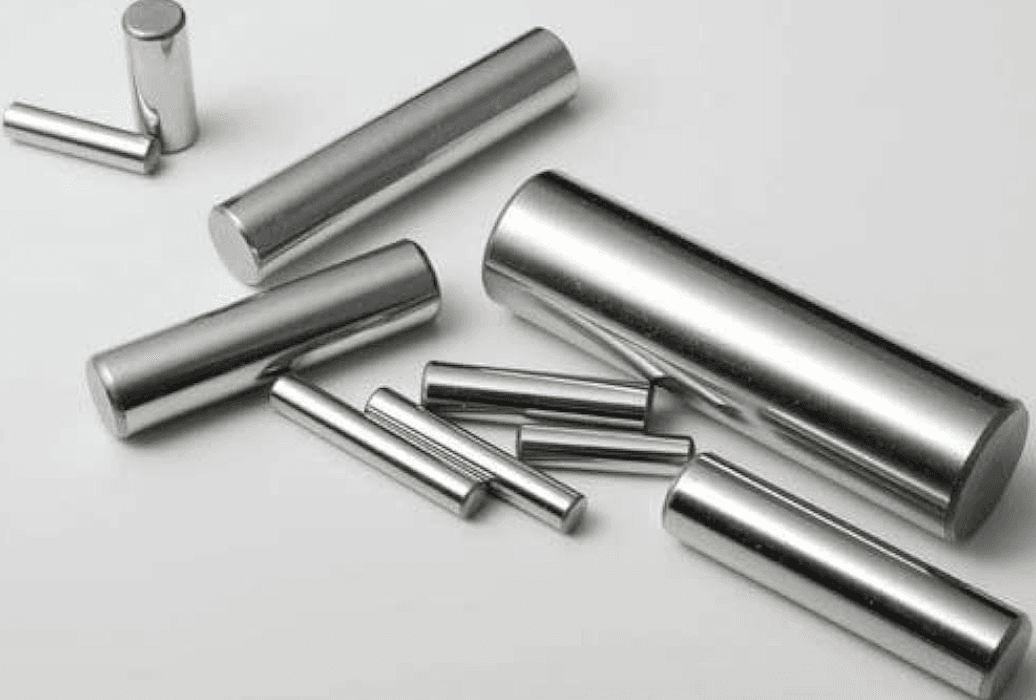

What are Dowel Pins?
Dowel pins are cylindrical, precision-machined components used to accurately align or join two or more parts. Designed for critical assemblies across automotive, aerospace, and electronic systems, they ensure stability, load sharing, and tight fits with zero compromise on performance.
Manufacturing Process
1. Raw Material
We begin with certified metals and alloys to ensure dimensional stability, corrosion resistance, and machinability across all production batches.
2. Cutting
Bar stock or wire is precision cut to length using high-speed cutting machines to meet dimensional requirements.

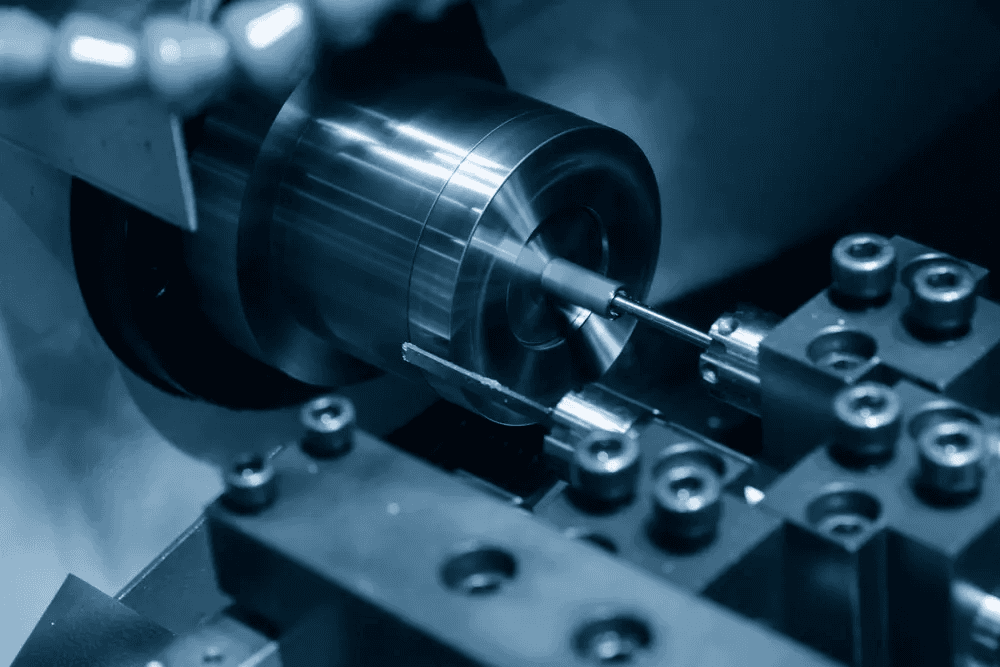

3. CNC Machining
Each pin undergoes centerless grinding or CNC turning to achieve tight tolerances up to ±0.005 mm and superior surface finishes.
4. Heat Treatment (Conditional)
Where required, pins are heat-treated to improve hardness, tensile strength, and durability.
5. Surface Finishing (Conditional)
Optional passivation, plating, or polishing improves wear resistance and protects against corrosion.
6. Inspection & Testing
Each dowel pin is checked for concentricity, straightness, and surface integrity to meet international standards.
7. Packing
Pins are packed in anti-corrosive packaging to retain dimensional and surface accuracy during transit.
8. Dispatch
Ready-to-use parts are shipped on time, ensuring zero assembly delay.
Specifications
| Parameter | Value |
|---|---|
| Dimensions | 1 mm to 200 mm (custom sizes available) |
| Tolerance | Up to ±0.005 mm |
| Material Options | Stainless Steel, Aluminum, Brass, Copper |
| Finish | As per customer requirement |
| Surface Integrity | Deburred, Polished, or Passivated |
Technical Specifications
| Property | Typical Range |
|---|---|
| Tensile Strength (Stainless Steel) | Up to 900 MPa |
| Hardness (Heat-treated) | 55–60 HRC |
| Surface Finish | Ra 0.2 to Ra 0.8 |
| Straightness | ≤ 0.01 mm over 100 mm |
| Cylindricity | ≤ 0.005 mm |
Features & Advantages
1
Precision-ground for accurate alignment
2
Available in a wide variety of sizes and metals
3
Excellent shear strength for load-bearing assemblies
4
Resistant to corrosion, deformation, and fatigue
5
Fully customizable based on application and fit
6
Compatible with press-fit, slip-fit, and interference-fit systems
Applications Across Industries
1
Automotive
Used in gearboxes, chassis assemblies, and transmission systems
2
Aerospace
Provides alignment in aircraft frame assemblies and engine components
3
Electronics
Enables PCB alignment and support in enclosures
4
Electrical
Ensures connector alignment in switchgear and control panels
Trust Reliability & Quality
With over 65 years of manufacturing excellence, PML delivers Dowel Pins trusted by OEMs and Tier 1 suppliers across sectors demanding robust performance.
ISO 45001
Occupational Health and Safety (OH&S) management systems
ISO 14001
Environmental Management Systems (EMS)
ISO 9001
Quality Management Systems (QMS)
IATF 16949
International Standard for Automotive Management Systems
AS 9100
Aerospace Quality Management System (QMS)
Frequently Asked Questions
They ensure precise alignment, hold components in fixed positions, and transfer load across mating parts.
