Current Sensing Modules
CAN Enabled System
Intelligent Communication for Real-Time Control Systems
Integrated Communication and Monitoring of Current
Enable seamless sensor integration and real-time data exchange across distributed control systems.

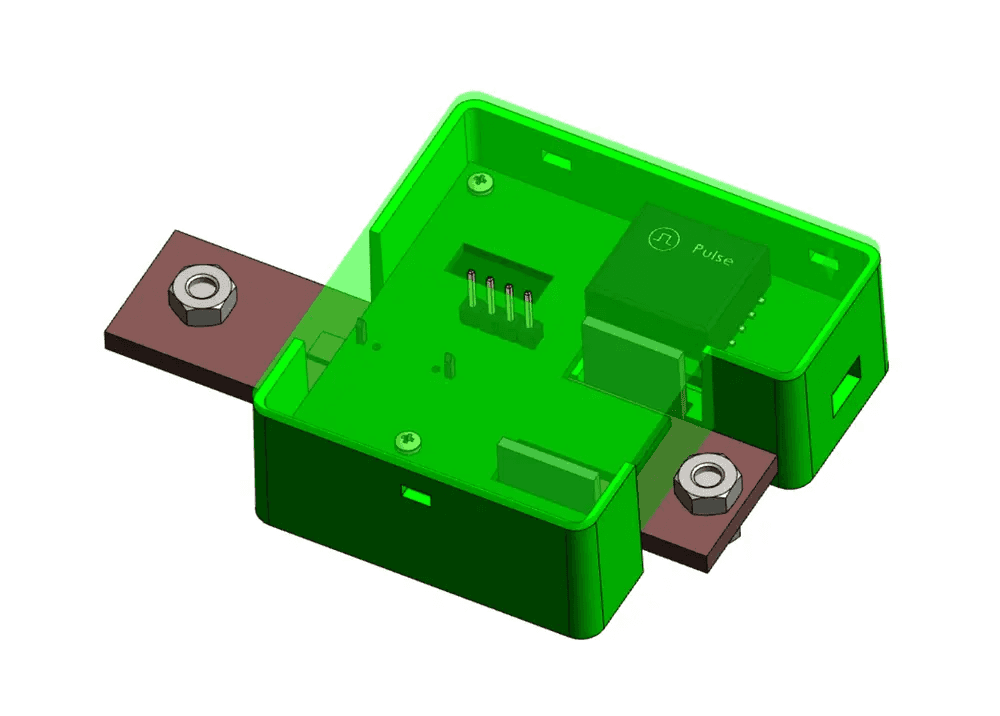

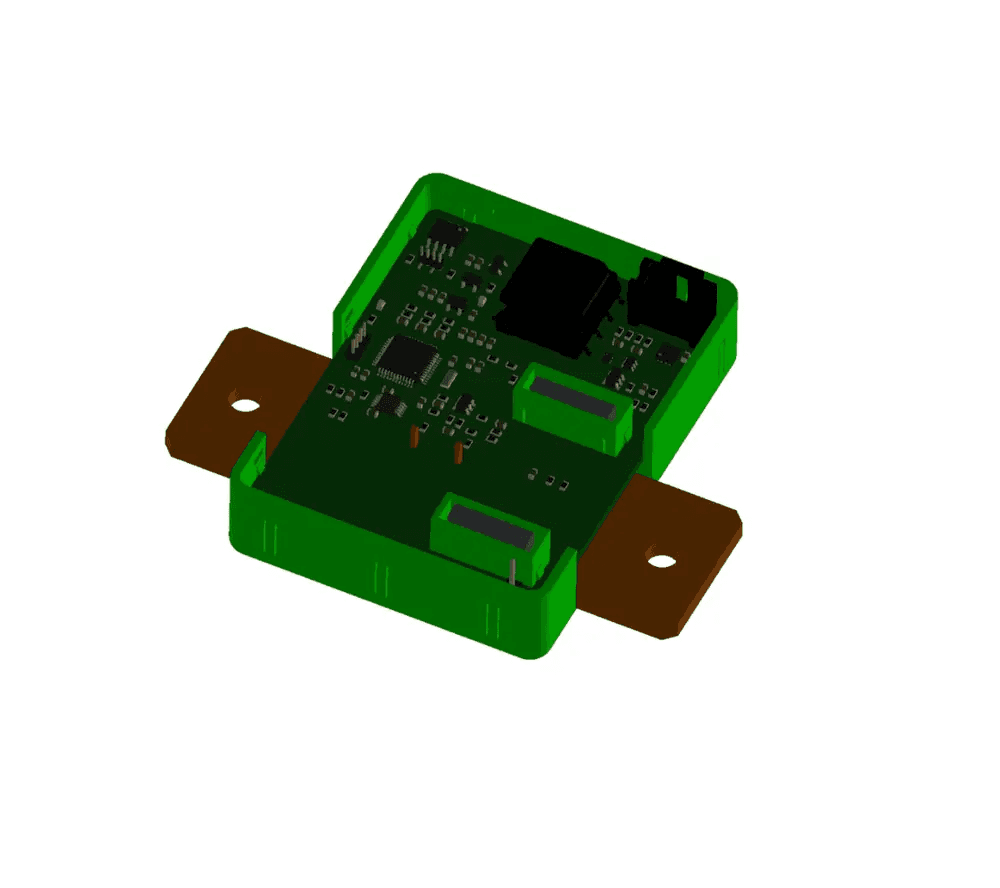

CAN-Enabled Smart Current Sensing for Connected Systems
Built on the robust CAN protocol, this module enables high-speed, reliable communication between vehicle ECUs while integrating dual-sensor current measurement using Hall effect and shunt technologies. The result is precise, real-time current data for enhanced control, safety, and performance in critical EV applications.
Properties
Key Features
Supports CAN protocol for seamless communication across automotive ECUs
Your specifications drive custom braiding patterns, strand counts, material selections, and end-terminal configurations.
Hybrid current measurement system using Hall and shunt technologies
Tailored to match your voltage, current, or grounding needs—backed by expert engineering input.
Accurate, real-time data transmission for critical EV subsystems
We utilize high-tension copper braiding equipment to produce consistent, interlocked wire patterns with optional sleeves, terminations, and insulation.
Compatible with industry-standard battery management systems (BMS)
Each assembly is inspected for strand integrity, continuity, and dimensional accuracy. Custom testing protocols for mechanical pull strength, contact resistance, and HV insulated flexible wire.
Enables onboard diagnostics, energy analytics, and range prediction
Options include tinned or bare copper, nickel-plated finishes, and terminal lugs or crimps—cut and assembled to spec. Custom sleeving, heat shrink tubing, or labeling available for application-specific identification.
Industries
Technical Requirements
CAN Bus Interface
Standard CAN 2.0B (compatible with most automotive platforms)
Power Supply
5V / 12V depending on integration
Sensor Accuracy
Hall and shunt hybrid architecture ensures high-resolution current tracking
Protocol Customization
Sensor priority and data transmission rates programmable via main control unit
Industries
Applications in Electric Mobility
The CAN Enabled System is ideal for
1
Battery Usage Monitoring
Track energy flow during charging and discharging.
2
Range Estimation
Communicate energy metrics to central systems for dynamic range calculations.
3
Efficiency Analysis
Enable onboard energy consumption tracking for performance optimization.
4
Real-Time System Feedback
Share sensor data across ECUs for enhanced safety, diagnostics, and automation.
Frequently Asked Questions
CAN enables fast, reliable communication between multiple subsystems without point-to-point wiring, allowing complex decision-making and diagnostics in EVs.
Trust Reliability & Quality
With over 65 years of manufacturing excellence, PML delivers CAN Enabled Current Monitoring System trusted by OEMs and Tier 1 suppliers across sectors demanding robust performance.
